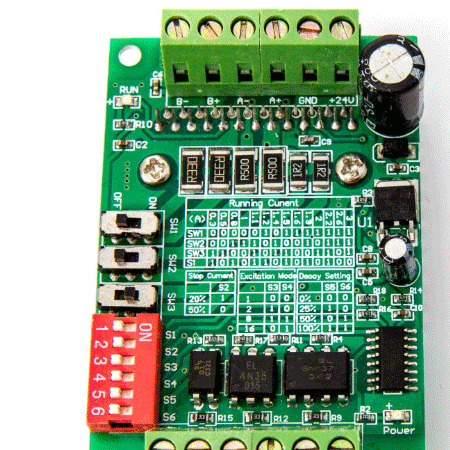

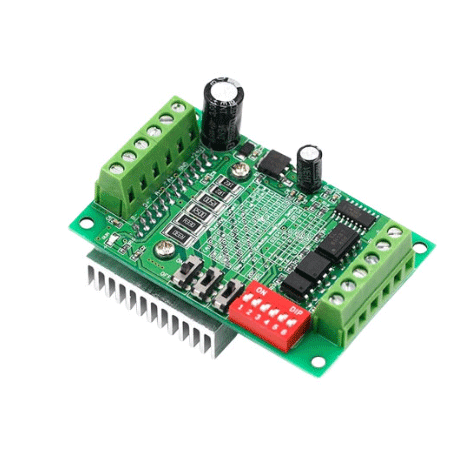

TB6560 stepper motor driver:

The TB6560 stepper motor driver is a commonly used driver module designed to control bipolar stepper motors in various applications, such as CNC machines, 3D printers, robotic arms, and other precision motion control systems. Here's an overview of the TB6560 stepper motor driver:

1. Bipolar Stepper Motor Control: The TB6560 driver is specifically designed to control bipolar stepper motors, which have two coils per phase. This type of motor requires a driver circuit to control the current flow through each coil to enable precise positioning and motion control.
2. TB6560 Chip: The driver module is built around the Toshiba TB6560AHQ chip, which is a bipolar constant-current micro-stepping motor driver. This chip provides high torque and smooth motion control for stepper motors.
3. Micro-stepping Support: The TB6560 driver typically supports micro-stepping, allowing for smoother motion and improved resolution compared to full-step driving. Micro-stepping divides each full step into smaller increments, providing finer control over motor movement and reducing vibration and noise.
4. Current Regulation: The TB6560 driver features adjustable current regulation to control the amount of current supplied to the stepper motor coils. This allows users to optimize the motor's performance and prevent overheating and damage.
5. Voltage and Current Ratings: The TB6560 driver is designed to operate with a wide range of input voltages, typically between 9V and 42V DC. The maximum current output per phase depends on the specific model of the driver but is typically in the range of 2A to 3A.
6. Protection Features: The TB6560 driver module may include various protection features, such as overcurrent protection, thermal shutdown, and reverse polarity protection, to prevent damage to the driver and connected components.

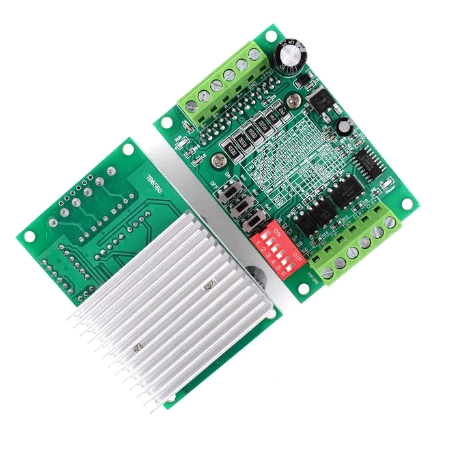

7. Heat Sink: Due to the power dissipation involved in driving stepper motors, the TB6560 driver module often comes with a built-in heat sink or provisions for attaching an external heat sink to dissipate heat generated during operation.
8. Control Interface: The TB6560 driver typically provides simple step and direction control inputs, making it compatible with a wide range of microcontrollers, such as Arduino, Raspberry Pi, and other embedded systems. Some models may also include additional inputs for configuring micro-stepping modes and current settings.
