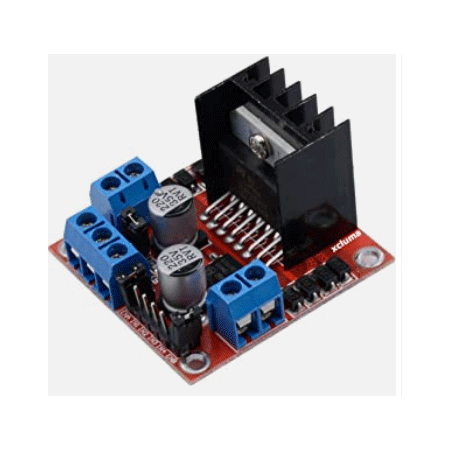

L298N Motor Driver:

The L298N is another popular motor driver IC commonly used in robotics and electronics projects. Similar to the L293D, the L298N is an H-bridge motor driver that allows control of DC motors in both directions. Here are some key features and information about the L298N motor driver:

1. Dual H-Bridge: The L298N consists of two independent H-bridges, which means it can control two DC motors independently or control the direction and speed of a single bipolar stepper motor.
2. Motor Voltage: It can handle motor voltages up to 46 volts, making it suitable for a wide range of motors, especially in medium to high-power applications.
3. Current Handling: The L298N has a higher current-handling capability compared to the L293D. It can handle continuous currents of up to 2A per channel and peak currents up to 3A per channel.
4. Logic Voltage: The logic inputs (control signals) of the L298N are compatible with TTL and CMOS levels. It can be easily interfaced with microcontrollers and other digital circuits.
5. Built-in Diodes: Similar to the L293D, the L298N has built-in diodes to protect against back electromotive force (EMF) generated by the motor.
6. Enable Pins: The L298N features enable pins for each H-bridge, allowing you to enable or disable each motor independently.
7. Overtemperature Protection: Some versions of the L298N include overtemperature protection to prevent the IC from overheating.

Here's a simple example of the pinout:

• 1, 2, 15, 16 (Vs): Motor power supply (connected to the motor voltage).
• 4, 5, 12 (Vss): Logic power supply (connected to the microcontroller's power supply).
• 7, 10, 12 (Enable and Input Pins): These are the control pins for the H-bridges, used to control the direction and enable/disable the motors.
