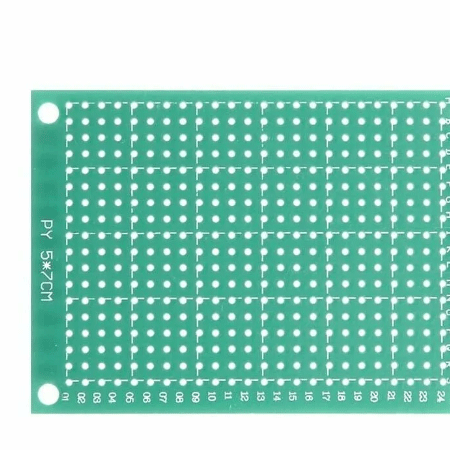

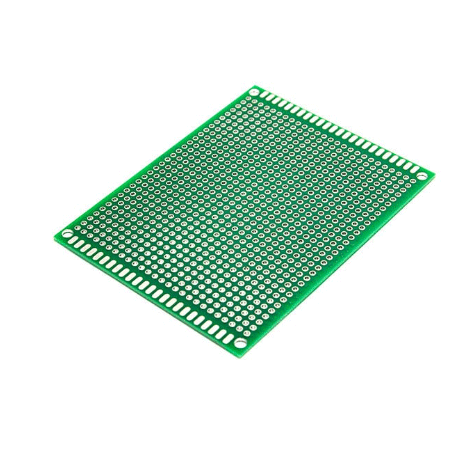

5*7 cm single PCB prototype board:

A 5x7 cm single-sided PCB prototype board refers to a printed circuit board used for prototyping electronic circuits, with dimensions of 5 centimeters by 7 centimeters. Here are some features and considerations for such a PCB:

1. Single-Sided PCB:
   • The PCB has copper traces on one side only. The components and connections are typically soldered on this side, while the other side may have a solder mask or be left without components.
2. Dimensions:
   • The dimensions are specified as 5 centimeters by 7 centimeters, providing a compact area for prototyping electronic circuits.
3. Copper Layer:
   • The copper layer on the PCB serves as the conductive surface where electronic components are soldered, and traces are created to establish electrical connections. The thickness of the copper layer can vary.
4. Substrate Material:
   • The substrate material provides mechanical support and insulation between the copper traces. Common substrate materials include FR-4 (a flame-retardant fiberglass epoxy material) or similar materials.
5. Solder Mask:
   • The solder mask is a protective layer applied to the PCB to insulate the copper traces and prevent solder bridges. It is usually a colored layer (commonly green) on the side opposite the copper layer.
6. Component Placement:
   • Components, such as resistors, capacitors, and integrated circuits, are mounted on the side with the copper layer. The layout and placement of these components are crucial for proper functionality and electrical connectivity.
7. Through-Hole Components:
   • Through-hole components are commonly used in single-sided PCBs. These components have leads that pass through holes in the PCB and are soldered on the opposite side.
8. Applications:
   • Single-sided PCBs with compact dimensions, such as 5x7 cm, are suitable for small electronic circuits, prototypes, and projects where space is limited. They are often used in educational settings, hobbyist projects, and initial circuit testing.
