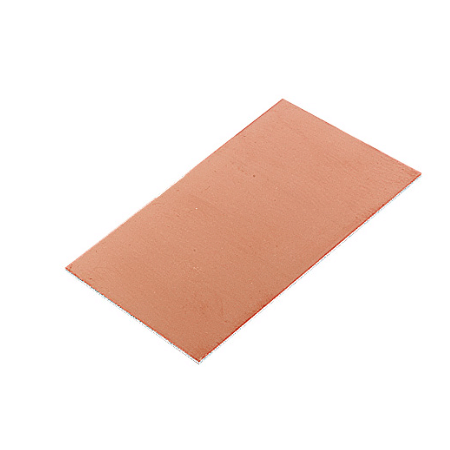

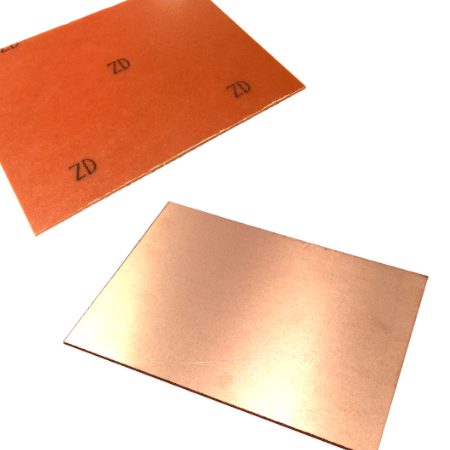

6*4 inch single side copper clad printed circuit board:

A 6x4 inch single-sided copper-clad printed circuit board (PCB) refers to a PCB with a copper layer on only one side, and the overall dimensions of the board are 6 inches by 4 inches. Here are some key features and considerations for such a PCB:

1. Single-Sided PCB:
   • The copper layer is present on only one side of the PCB. This means that components and traces are typically soldered to one side, while the other side may have a solder mask or be left without components.
2. Dimensions:
   • The dimensions of the PCB are specified as 6 inches by 4 inches. This size provides a specific area for designing and placing electronic components and traces.
3. Copper Layer:
   • The copper layer serves as the conductive surface where electronic components are soldered, and traces are created to establish electrical connections. The thickness of the copper layer can vary, commonly measured in ounces (e.g., 1 oz or 2 oz copper).
4. Substrate Material:
   • The substrate material of the PCB provides mechanical support and insulation between the copper traces. Common substrate materials include FR-4 (a flame-retardant fiberglass epoxy material) or similar materials.
5. Solder Mask:
   • The solder mask is a protective layer applied to the PCB to insulate the copper traces and prevent solder bridges. It is usually a colored layer (commonly green) on the side opposite the copper layer.
6. Component Placement:
   • Components, such as resistors, capacitors, and integrated circuits, are mounted on the side with the copper layer. The layout and placement of these components are crucial for proper functionality and electrical connectivity.
7. Through-Hole Components:
   • Through-hole components are often used in single-sided PCBs. These components have leads that pass through holes in the PCB and are soldered on the opposite side.
8. Applications:
   • Single-sided PCBs are suitable for simple electronic circuits, prototypes, and hobbyist projects. They are cost-effective and easier to manufacture compared to double-sided or multilayer PCBs.
