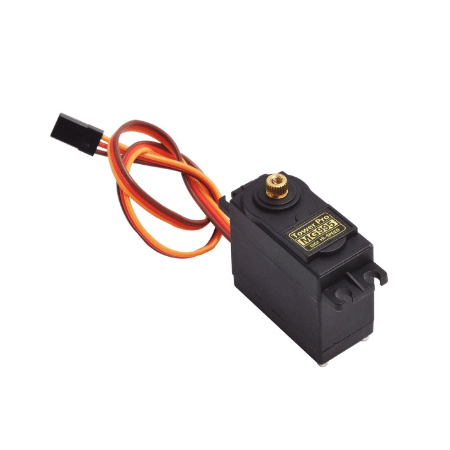

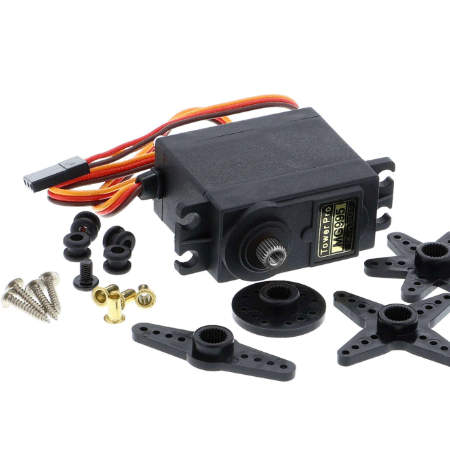

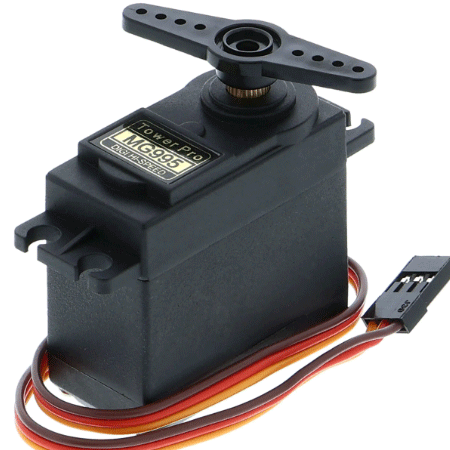

Servo Motor mg995:

The MG995 is a popular and widely used servo motor in hobbyist and robotics projects. Here are the key details about the MG995 servo motor:

1. Type: MG995 is a standard-sized servo motor.
2. Operating Voltage: Typically operates at 4.8V to 6V. It is commonly powered by a 4.8V rechargeable NiMH (Nickel Metal Hydride) battery pack or a 5V power supply.
3. Torque: The torque of the MG995 is higher compared to micro-sized servos, usually around 9 kg-cm to 11 kg-cm, depending on the operating voltage.
4. Speed: The speed of the MG995 is relatively slower compared to micro-sized servos, typically around 0.20 seconds per 60 degrees rotation.
5. Rotation Angle: The MG995 can typically rotate up to 180 degrees.
6. Control Interface: It uses pulse-width modulation (PWM) signals for control. The typical PWM range is 1000μs to 2000μs, with 1500μs usually being the center position.
7. Connector Type: The MG995 commonly comes with a three-wire interface - power (VCC), ground (GND), and signal (PWM).
8. Size: The physical dimensions of the MG995 are larger compared to micro-sized servos, making it suitable for applications requiring higher torque.
9. Weight: It is heavier than micro-sized servos due to its larger size and higher torque.
10. Applications: Commonly used in robotics, RC (Radio Control) vehicles, mechanical projects, and applications where higher torque is required.
11. Manufacturer: The MG995 is produced by various manufacturers, and it is widely available in the market.
