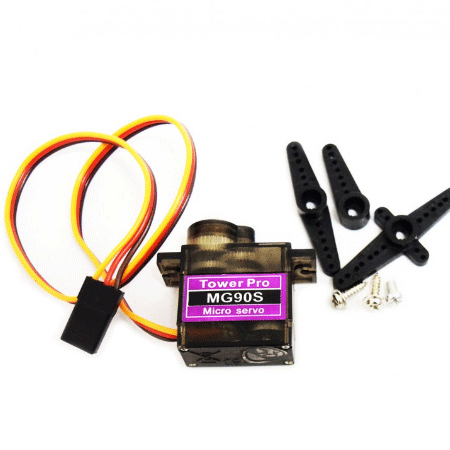

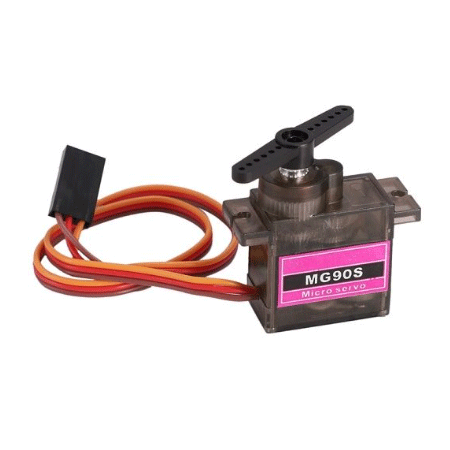

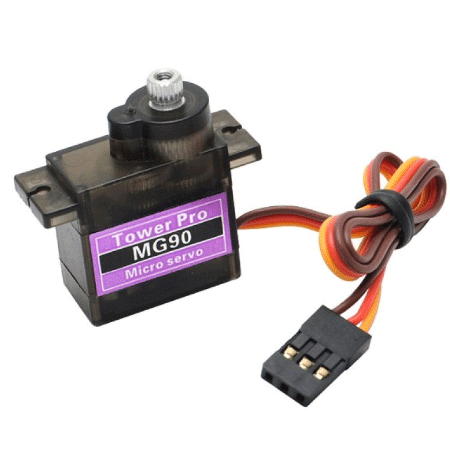

Servo Motor mg90:

The MG90 is another commonly used micro-sized servo motor, similar to the SG90. Here are the key details about the MG90 servo motor:

1. Type: MG90 is a micro-sized servo motor.
2. Operating Voltage: Typically operates at 4.8V to 6V. It is commonly powered by a 4.8V rechargeable NiMH (Nickel Metal Hydride) battery pack or a 5V power supply.
3. Torque: The torque of the MG90 is around 2 kg-cm (at 4.8V) to 2.2 kg-cm (at 6V). Torque is the rotational force produced by the motor.
4. Speed: The speed of the MG90 is approximately 0.11 seconds per 60 degrees rotation (at 4.8V) or 0.10 seconds per 60 degrees rotation (at 6V).
5. Rotation Angle: The MG90 can typically rotate up to 180 degrees.
6. Control Interface: Like the SG90, it uses pulse-width modulation (PWM) signals for control. The typical PWM range is 1000μs to 2000μs, with 1500μs usually being the center position.
7. Connector Type: The MG90 commonly comes with a three-wire interface - power (VCC), ground (GND), and signal (PWM).
8. Size: The physical dimensions of the MG90 are compact, making it suitable for applications with limited space.
9. Weight: It is lightweight, making it suitable for projects where weight is a consideration.
10. Applications: Commonly used in RC (Radio Control) vehicles, robotics, model airplanes, and various other projects that require precise control of angular movement.
11. Manufacturer: The MG90 is produced by various manufacturers, and it is widely available and affordable in the market.
