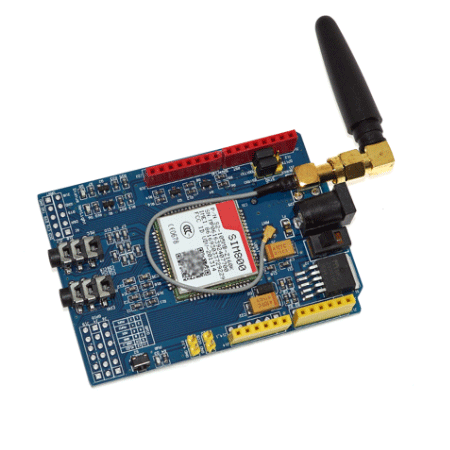

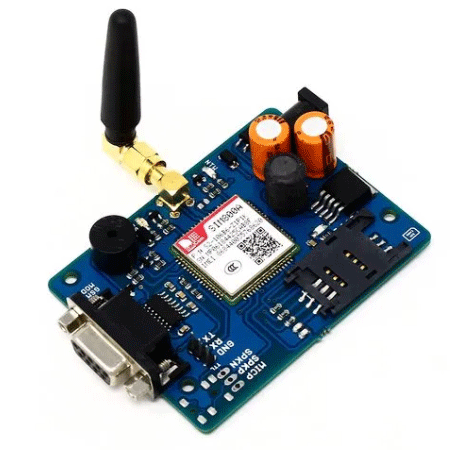

SIM900A GSM GPRS Module with Antenna:

Here are some key features and considerations for the SIM800C GSM/GPRS module:

1. Communication Standards: The SIM800C supports GSM for voice communication and GPRS for data communication. It operates in the 850/900/1800/1900 MHz frequency bands, making it suitable for use in various regions globally.
2. Communication Interfaces: The module typically communicates with a microcontroller or other devices using UART (Universal Asynchronous Receiver-Transmitter) communication. It uses AT commands for controlling and configuring various functionalities.
3. SIM Card Slot: The SIM800C module requires a standard SIM card for cellular network access. Ensure that the SIM card is properly inserted and activated.
4. Antenna: The module usually comes with an antenna connector for attaching an external GSM antenna. An external antenna can improve signal reception and transmission.
5. Power Supply: The SIM800C operates at a voltage typically ranging from 3.4V to 4.4V. It's essential to provide a stable and adequate power supply to ensure reliable operation.
6. GPRS Data Transmission: The module supports GPRS for data transfer, enabling applications such as sending/receiving SMS, making HTTP requests, and establishing TCP/UDP connections.
7. Audio Support: The SIM800C includes an audio interface for connecting a microphone and a speaker, allowing for voice communication capabilities.
8. Control and Status Pins: The module has various pins for controlling and monitoring its status. These pins may include GPIO (General Purpose Input/Output) pins for additional functionalities.
9. LED Indicators: Some versions of the SIM800C module come with LED indicators to show the status of the module, such as power, network registration, and data transmission.
10. Sleep Mode: The module typically supports a low-power sleep mode to conserve energy when not actively transmitting or receiving data.
11. Temperature Range: Consider the operating temperature range of the SIM800C module to ensure its suitability for the intended environment.
12. Compatibility: The SIM800C module is compatible with various microcontrollers and platforms, including Arduino and Raspberry Pi. Libraries and sample code are available to facilitate integration.
13. Applications: The SIM800C is used in a variety of applications, including remote monitoring systems, GPS trackers, smart agriculture, and other IoT projects requiring cellular connectivity.
14. External Components: Some SIM800C modules may require external components such as capacitors and resistors for proper operation. Refer to the module's datasheet for the recommended circuit configuration.
15. Documentation: Refer to the datasheet and documentation provided by the module manufacturer for detailed specifications, pin configurations, AT command set, and usage guidelines.
