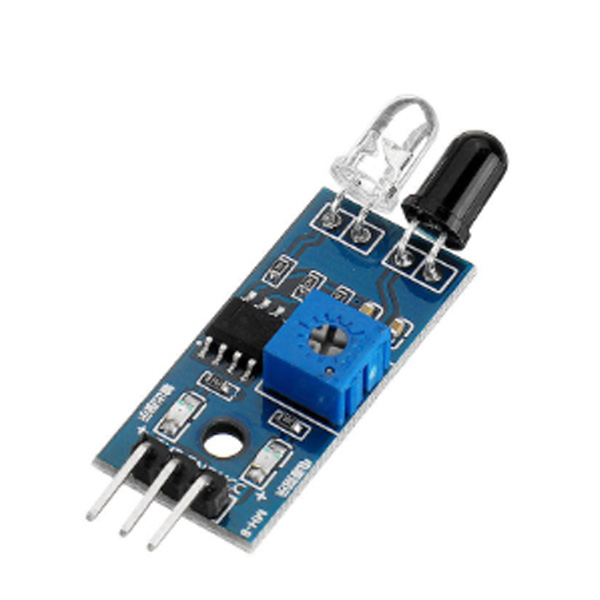

IR Sensor:
Our Infrared (IR) Sensor Module is a versatile device designed for detecting infrared radiation. It's commonly used in various applications such as proximity sensing, object detection, and motion detection.
Warnings:
- Do not expose the module to direct sunlight as it may affect performance.
- Avoid exposing the module to extreme temperatures or humidity.
-
Easy Returns
-
Quality Service
-
Original Product
Key Features:
- High sensitivity to infrared radiation
- Compact and easy-to-use module
- Wide detection range
- Adjustable sensitivity
- Digital and/or analog output options
- Low power consumption
- Simple interface for integration into various projects
Specifications:
- Operating Voltage: 3.3V - 5V DC
- Detection Range: Up to 1 meter (depending on environmental conditions)
- Detection Angle: 120 degrees
- Output Type: Digital (TTL compatible) and/or Analog (0-5V)
- Output Signal: High when detecting infrared radiation, Low when no detection
- Response Time: < 10ms
- Operating Temperature: -20°C to 85°C
- Dimensions: 15mm x 10mm x 5mm
- Mounting Holes: 2.5mm diameter, spaced 10mm apart (center to center)
- Pinout: VCC, GND, OUT (digital), AOUT (analog)
Applications:
- Proximity sensing
- Object detection
- Motion detection
- Ambient light sensing
- Security systems
- Robotics
- Automated appliances
