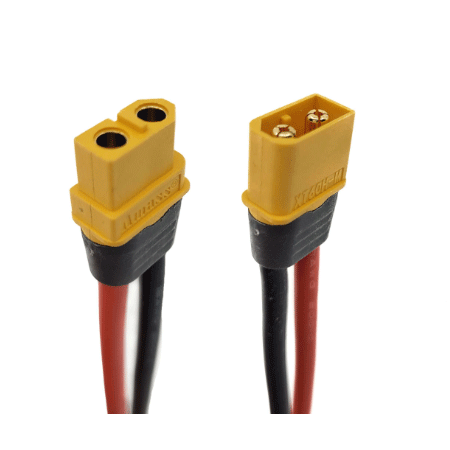

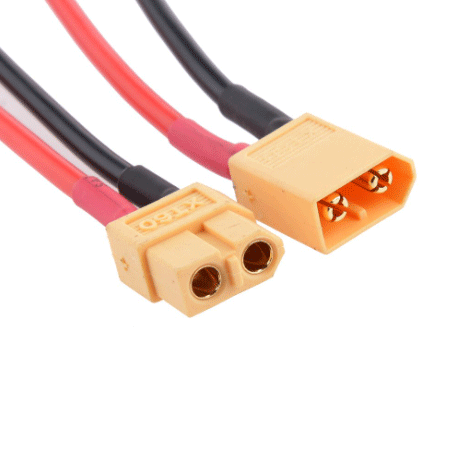

XT60 Male / Female Connectors:

XT60 connectors are commonly used in radio-controlled (RC) hobby applications, particularly for connecting batteries to drones, airplanes, cars, boats, and other RC vehicles. Here's what you need to know about XT60 male and female connectors:

1. Male Connector (XT60 Male):
   • The male connector features bullet-style pins.
   • It typically has a plastic housing with two protruding pins, which are inserted into the female connector.
   • The male connector is usually attached to the battery or power source.
2. Female Connector (XT60 Female):
   • The female connector features receptacles for the male pins.
   • It typically has a plastic housing with two receptacles that accept the male pins.
   • The female connector is typically attached to the device, such as an RC vehicle or power distribution board.
3. Polarity: XT60 connectors are polarized, meaning they have a specific orientation to ensure correct polarity. The male and female connectors are designed to mate only in one orientation to prevent reverse polarity connections, which could damage the equipment or cause a short circuit.
4. Current Rating: XT60 connectors are known for their high current handling capabilities. They are commonly rated for currents up to 60 amps, although there are variants with higher ratings available.
5. Compatibility: XT60 connectors are widely used in the RC hobby industry and are compatible with various battery chemistries, including lithium polymer (LiPo), lithium-ion (Li-ion), and nickel-metal hydride (NiMH).
6. Soldering: XT60 connectors are typically soldered onto wires to create custom battery leads or power distribution harnesses. Proper soldering techniques should be used to ensure reliable connections.
7. Applications: XT60 connectors are used in a wide range of RC applications, including drones, airplanes, helicopters, cars, boats, and more. They are also used in various DIY electronics projects where high-current connections are required.
