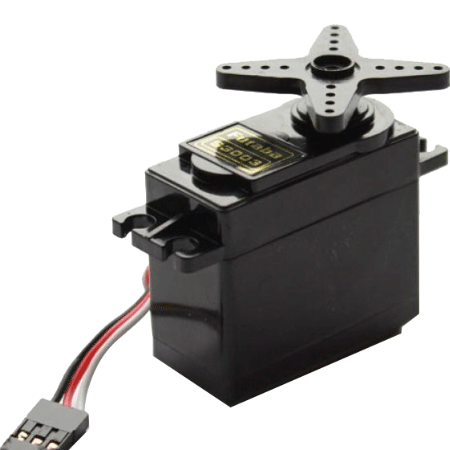

Futaba S3003 Servo Motor with 3.2Kgcm Torque For Robots Arduino:

The Futaba S3003 servo motor is a popular choice for robotic applications, including projects involving Arduino microcontrollers. Here's some information about this servo motor:

1. Type: The Futaba S3003 is a standard-sized analog servo motor. It operates using a pulse width modulation (PWM) signal to control its position.
2. Torque: The S3003 servo motor has a torque rating of approximately 3.2 kg-cm (kilogram-centimeters). Torque is a measure of rotational force, and a higher torque rating indicates the motor's ability to exert more force to move objects or mechanisms.
3. Speed: The speed of the servo motor refers to how quickly it can move between different positions. The speed of the S3003 servo motor is typically around 0.23 seconds per 60 degrees.
4. Voltage: The operating voltage range of the S3003 servo motor is typically between 4.8V and 6.0V. It's essential to power the servo within this range to ensure optimal performance and prevent damage.
5. Control: The S3003 servo motor can be controlled using a pulse width modulation (PWM) signal. Arduino microcontrollers can generate PWM signals to control the position of the servo motor accurately.
6. Compatibility: The S3003 servo motor is compatible with a wide range of Arduino boards, including the popular Arduino Uno, Arduino Mega, and Arduino Nano. It can be easily integrated into Arduino projects using the standard Servo library.
7. Applications: The S3003 servo motor is suitable for various robotic applications, including robot arms, grippers, pan-tilt mechanisms, and other motion control systems. Its moderate torque and speed make it versatile for both hobbyist and educational projects.

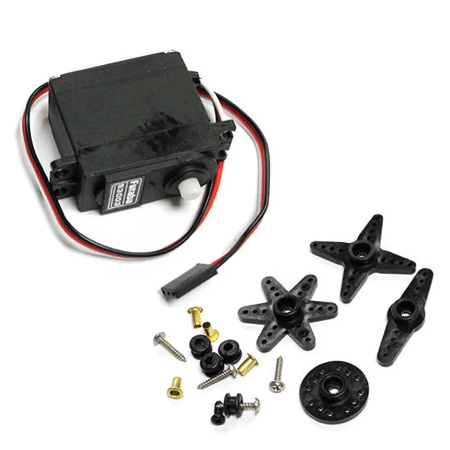

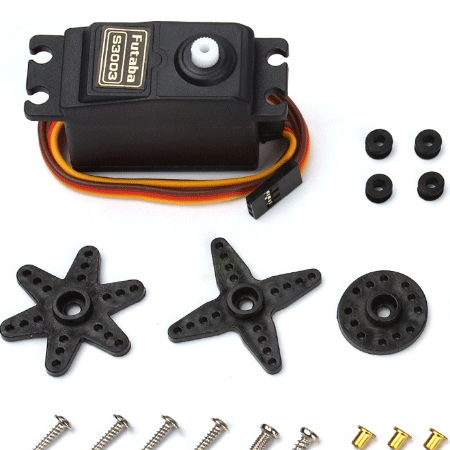

8. Mounting: The S3003 servo motor features standard mounting holes and a splined output shaft, making it easy to install and connect to mechanical systems or linkages.
