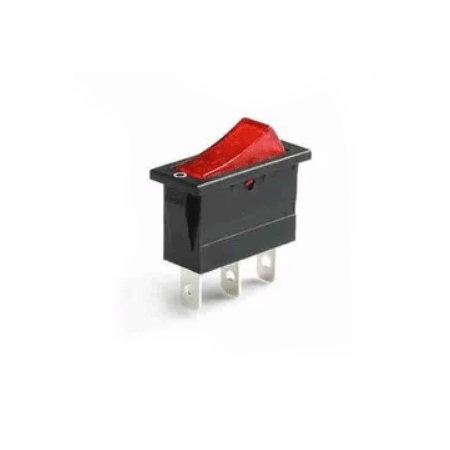

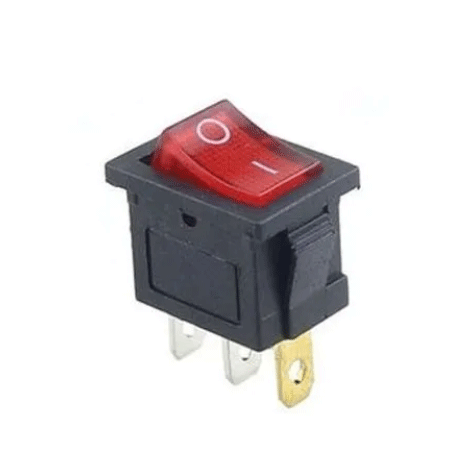

3 pin rocker switch- Pack of 5:

Here are some key features and considerations for a 3-pin rocker switch:

1. Number of Pins:
   • A 3-pin rocker switch has three electrical terminals or pins. The switch is designed to open or close the electrical circuit by rocking between two positions.
2. Functionality:
   • The basic functionality of a 3-pin rocker switch is similar to that of a 2-pin rocker switch. It provides a simple on/off or open/close control. When the switch is in one position, the circuit is closed, allowing current to flow. When the switch is in the other position, the circuit is open, interrupting the flow of current.
3. Rocker Design:
   • The switch has a rocker-shaped actuator that can be pressed down on one side to make contact and on the other side to break contact. The three pins are used for the electrical connections associated with the switch's operation.
4. Pins Configuration:
   • The three pins on a rocker switch are typically labeled as follows:
     • Common (C): The central pin is the common terminal.
     • Normally Open (NO): One of the outer pins is the normally open terminal.
     • Normally Closed (NC): The other outer pin is the normally closed terminal.
5. Applications:
   • 3-pin rocker switches are used in a variety of devices and systems where control with multiple states is required. They are suitable for applications where the switch needs to have both normally open and normally closed states.
6. Illumination (Optional):
   • Some 3-pin rocker switches come with built-in LED indicators for illumination. The illumination can indicate the switch's status or whether it is in the on or off position.
7. Mounting:
   • 3-pin rocker switches are often designed for panel mounting. They may have a rectangular or round shape, and the switch body is mounted onto a panel or surface.
8. Ratings:
   • Check the electrical ratings of the switch, including the maximum voltage and current it can handle. This is important to ensure that the switch is suitable for the intended application.
