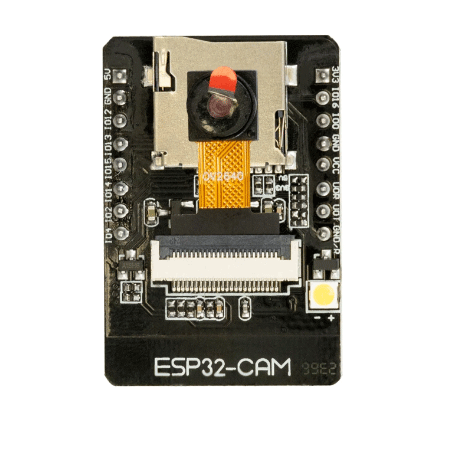

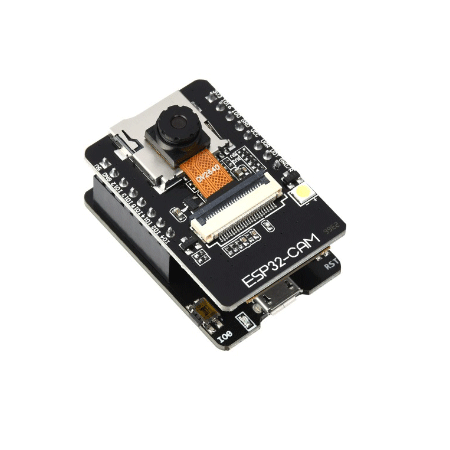

ESP32 camera module:

Here are key features and considerations for ESP32 camera modules:

1. ESP32 Integration: The camera module is designed to work seamlessly with the ESP32 microcontroller, providing an efficient solution for projects that require both wireless communication and camera functionality.
2. OV2640 Sensor: The most common camera sensor used in ESP32 camera modules is the OV2640, which is a 2-megapixel CMOS image sensor. It supports various image resolutions and features such as JPEG compression.
3. OV7670 Sensor: Some ESP32 camera modules may use the OV7670 image sensor, which has a lower resolution compared to the OV2640 but is still suitable for certain applications.
4. Camera Resolutions: ESP32 camera modules typically support various resolutions, including CIF, VGA, SVGA, XGA, and UXGA. The choice of resolution depends on the application's requirements for image quality and data size.
5. JPEG Compression: The camera modules often support JPEG compression, allowing the captured images to be efficiently stored and transmitted over networks with reduced data size.
6. Frame Rate: ESP32 camera modules support adjustable frame rates, allowing developers to choose the desired frame rate for capturing images or recording video. Common frame rates include 1, 2, 5, 10, 15, 20, and 30 frames per second.
7. Streaming Video: Some ESP32 camera modules support real-time video streaming. This is particularly useful for applications such as surveillance cameras.
8. MicroSD Card Slot: Many ESP32 camera modules come with a microSD card slot for storing captured images and videos. This feature is valuable for projects that require local storage.
9. JPEG/BMP Output: Besides streaming, the camera module can capture still images in JPEG or BMP format, offering flexibility in how visual data is processed and stored.
10. Interface: The camera modules typically connect to the ESP32 via the Serial Camera Control Bus (SCCB) for configuration and the Digital Video Interface (DVP) for data transfer.
11. LED Flash: Some ESP32 camera modules include an onboard LED flash for improving image quality in low-light conditions.
12. Power Supply: Check the power requirements of the ESP32 camera module and ensure it receives a stable power supply within the specified voltage range.
13. Compatibility: Verify the compatibility of the camera module with the specific ESP32 development board you are using. Some modules are designed for specific ESP32 variants.
14. Development Environment: The ESP32 camera modules are typically programmed using the Arduino IDE with the ESP32 board support package installed. Libraries and example codes are available to facilitate development.
15. Documentation: Refer to the datasheet and documentation provided by the module manufacturer for detailed specifications, pin configurations, and usage guidelines.
