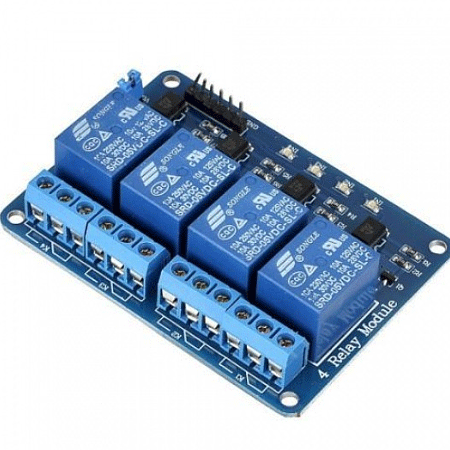

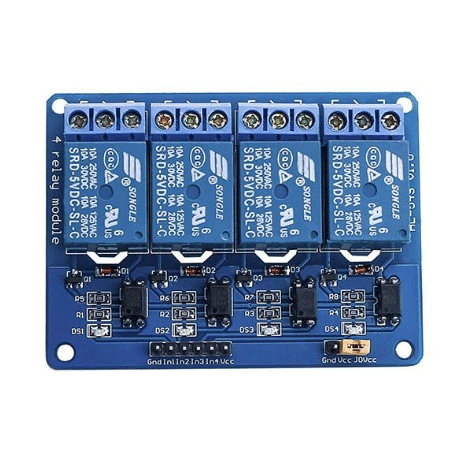

4 Channel Relay Module:

Here are some key features and considerations for a 4-channel relay module:

1. Number of Channels: A 4-channel relay module controls four independent electrical circuits. Each channel typically has its set of relay contacts.
2. Switching Capacity: The relay module's switching capacity indicates the maximum voltage and current it can handle for each channel. Ensure that the module is suitable for the electrical loads you intend to control.
3. Normally Open (NO) and Normally Closed (NC) Contacts: Each channel of the relay module usually has a common (COM) contact along with normally open (NO) and normally closed (NC) contacts. These contacts determine the default state of the relay.
4. Control Signal: Relay modules are triggered by a control signal, often a low-voltage and low-current signal from a microcontroller or another digital device. The control signal energizes the relay coil, causing the relay contacts to switch.
5. Input Voltage: The relay module requires a specific input voltage to energize the relay coil. Common input voltages include 5V or 12V, depending on the module's design.
6. Isolation: Many relay modules include opto-isolation for each channel, providing protection to the controlling device (e.g., microcontroller) from voltage spikes or interference from the high-power circuits being controlled.
7. LED Indicators: Each channel of the relay module may have LED indicators to visually indicate when the relay is energized (contacts closed) or de-energized (contacts open).
8. High-Quality Relays: The quality of the relays used in the module is important for reliability and long-term use. Look for relay modules with good-quality relays for better performance.
9. Mounting Options: Relay modules often have mounting holes for easy installation on a surface or inside an enclosure.
10. Application: 4-channel relay modules are used in various applications, including home automation systems, smart lighting control, industrial automation, and robotics.
11. Protection Features: Some relay modules include protection features, such as diodes or transorbs, to suppress voltage spikes when the relay contacts open or close.
12. Size and Form Factor: Consider the physical size and form factor of the relay module to ensure it fits within your project's constraints.
13. Relay Type: Relay modules may use different types of relays, such as electromagnetic relays or solid-state relays. Each type has its own advantages and limitations.
14. Documentation: Refer to the datasheet and documentation provided by the manufacturer for detailed specifications, pin configurations, and usage guidelines.
