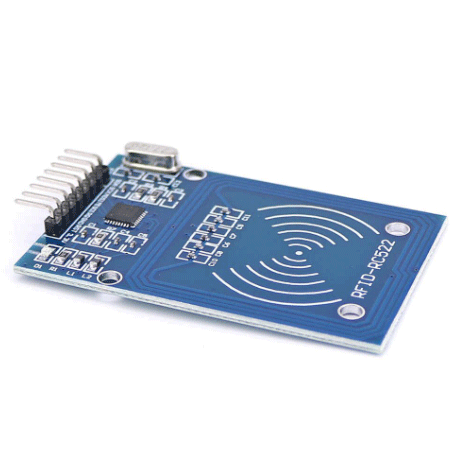

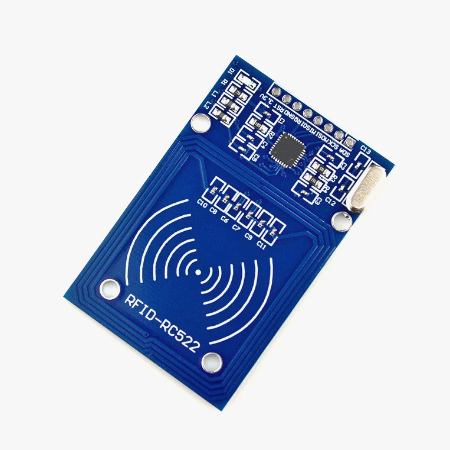

RFID sensor(RC522):

Here are some key features and considerations for the RFID RC522 sensor:

1. RFID Technology: RFID stands for Radio-Frequency Identification. It uses wireless communication to exchange data between an RFID reader (such as the RC522 module) and RFID tags or cards.
2. Operating Frequency: The RC522 module operates at the 13.56 MHz frequency, which is a common frequency for RFID applications.
3. Communication Protocol: The RC522 module typically uses the SPI (Serial Peripheral Interface) communication protocol to interface with microcontrollers such as Arduino.
4. Reading Distance: The reading distance of the RFID RC522 module is generally short, typically within a few centimeters. It is suitable for close-range applications.
5. Supported RFID Cards: The module supports various types of RFID cards, including ISO/IEC 14443 Type A cards, MIFARE cards, and others. Make sure that the RFID cards you plan to use are compatible with the module.
6. Antenna: The module comes with an integrated antenna for communication with RFID cards. The design and size of the antenna can affect the reading distance.
7. Voltage and Power Requirements: The RC522 module usually operates at 3.3V or 5V, depending on the specific model. Ensure that the power supply voltage matches the module's requirements.
8. Output Format: The RC522 module typically outputs unique identification numbers (UIDs) or data stored on the RFID cards when a card is detected.
9. Output Interface: As mentioned, the RC522 module uses the SPI interface for communication with microcontrollers. It provides digital outputs that can be easily interfaced with microcontrollers like Arduino.
10. Compatibility: The module is widely used and has libraries available for popular microcontroller platforms such as Arduino. This makes it relatively easy to integrate into projects.
11. Security Features: Some RFID cards and systems may have basic security features, such as encryption, to prevent unauthorized access.
12. Applications: The RFID RC522 module is commonly used in access control systems, attendance systems, inventory tracking, and other projects where contactless identification is required.
13. Form Factor: The module usually comes in a compact form factor with mounting holes for easy integration into projects.
14. LED Indicators: Some modules have LED indicators to show when a card is successfully detected or when communication is established.
15. Additional Features: Some versions of the RC522 module may have additional features, such as built-in EEPROM for storing data on the module.
