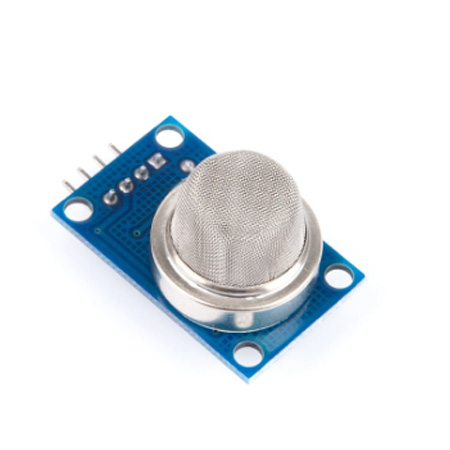

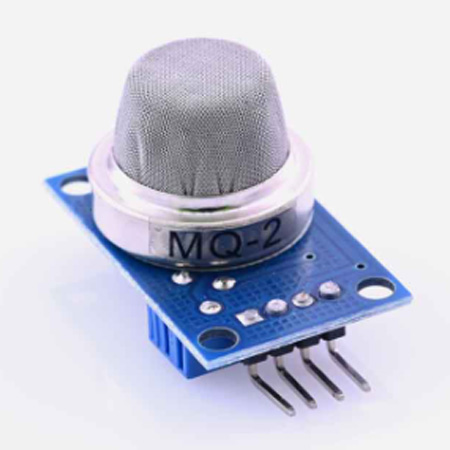

MQ-2 Gas Sensor:

 Here are some key details about the MQ-2 gas sensor:

1. Operating Principle: The MQ-2 sensor operates on the principle of resistance changes in the presence of specific gases. It contains a tin dioxide (SnO2) sensitive layer that reacts with gases, causing a change in the sensor's resistance.

2. Sensitivity to Gases:

   • Detectable Gases: Methane, propane, carbon monoxide, alcohol, smoke, and other combustible gases.
   • It is important to note that while the MQ-2 can detect these gases, its sensitivity to different gases may vary.

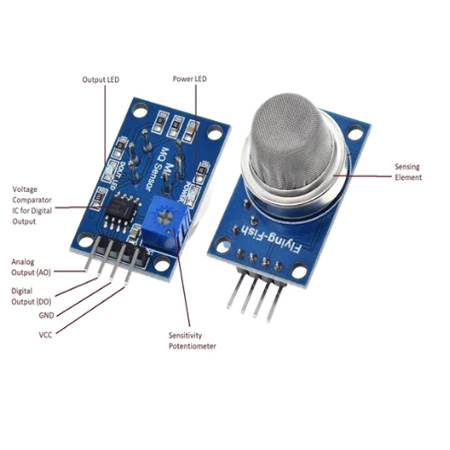

3. Structure:

   • The sensor typically consists of a small heating element and a sensing element.
   • The heating element is used to maintain a constant temperature of the sensing element.

4. Working Voltage:

   • The typical working voltage for the MQ-2 sensor is around 5V DC.

5. Heating Time:

   • The sensor requires some time to reach a stable operating temperature. This time is known as the heating time.

6. Analog Output:

   • The sensor provides an analog voltage output that varies with the concentration of the detected gas.

7. Digital Output:

   • Some versions of the MQ-2 sensor also have a digital output that can be used for interfacing with microcontrollers like Arduino. The digital output provides a high or low signal based on a predefined gas concentration threshold.

8. Precautions:

   • The sensor should be operated in a controlled environment to ensure accurate readings.
   • It is susceptible to contamination, so proper calibration is essential for accurate results.
   • The sensor has a limited lifespan, and its sensitivity may decrease over time.

9. Applications:

   • MQ-2 gas sensors are commonly used in gas detectors, industrial safety systems, and various DIY electronics projects.

10. Datasheets:

    • Detailed specifications and usage instructions can be found in the datasheet provided by the manufacturer. The datasheet may include information such as sensitivity curves, response time, and other technical details.
